Sub Mini
Deepen your enjoyment of TV, music, and more with bold bass when you pair Sub Mini with Beam, Ray, Era 100, One, or One SL. Place it anywhere in the room, breeze through setup with help from the Sonos app, and experience richer, more immersive sound without any buzz.
MPN: SUBM1US1BLK
How we specify in The Woodlands
The Woodlands brings shaded lots, large windows and two story family rooms. Ambient light usually decides the display or screen choice, and in-wall audio placement has to work around window walls. We read the light in the room before recommending anything. For the Sub Mini specifically, we confirm the fit against your room in The Woodlands, TX before quoting the install.
Service area: The Woodlands, Spring, Conroe, Shenandoah, Magnolia, Tomball, Montgomery, Oak Ridge North.
Specifications
Audio
| Amplifiers | Both Class-D digital amplifiers have been perfectly tuned to the unique acoustic architecture. |
|---|---|

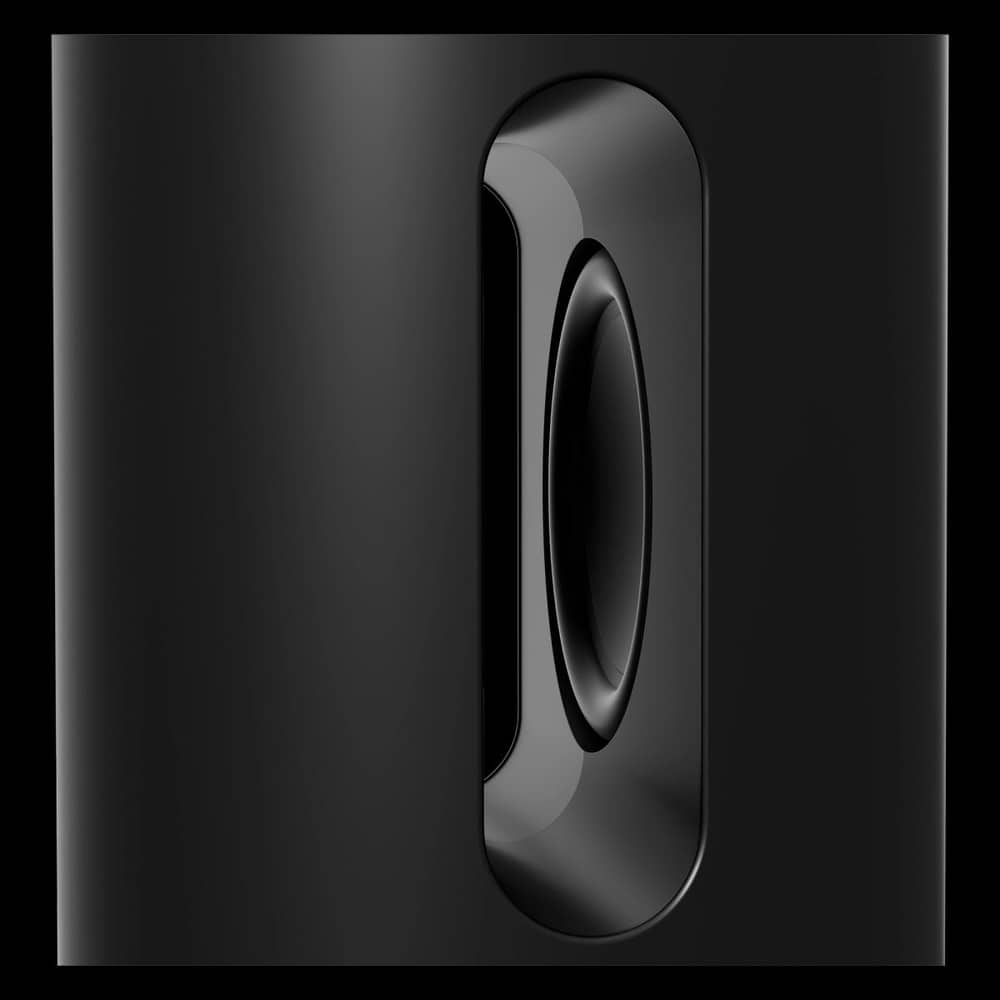

| Woofers | Dual 6" woofers face inward for a force-canceling effect. |
| Architecture | Sealed cabinet neutralizes distortion and enhances bass response. |
| Frequency Response | As low as 25 Hz |
| EQ | Audio settings automatically equalize to balance Sub Mini and the paired Sonos product(s). Use the Sonos app to adjust bass, treble, and loudness. |
| Trueplay | This software measures the acoustics of the room then fine-tunes your Sonos system. Supported iOS device required. Learn more |
Details and Dimensions
| Dimensions | Height: 12.01 in (305 mm) Width: 9.06 in (230 mm) Depth: 9.06 in (230 mm) |
|---|---|
| Weight | 14 lbs (6.35 kg) |

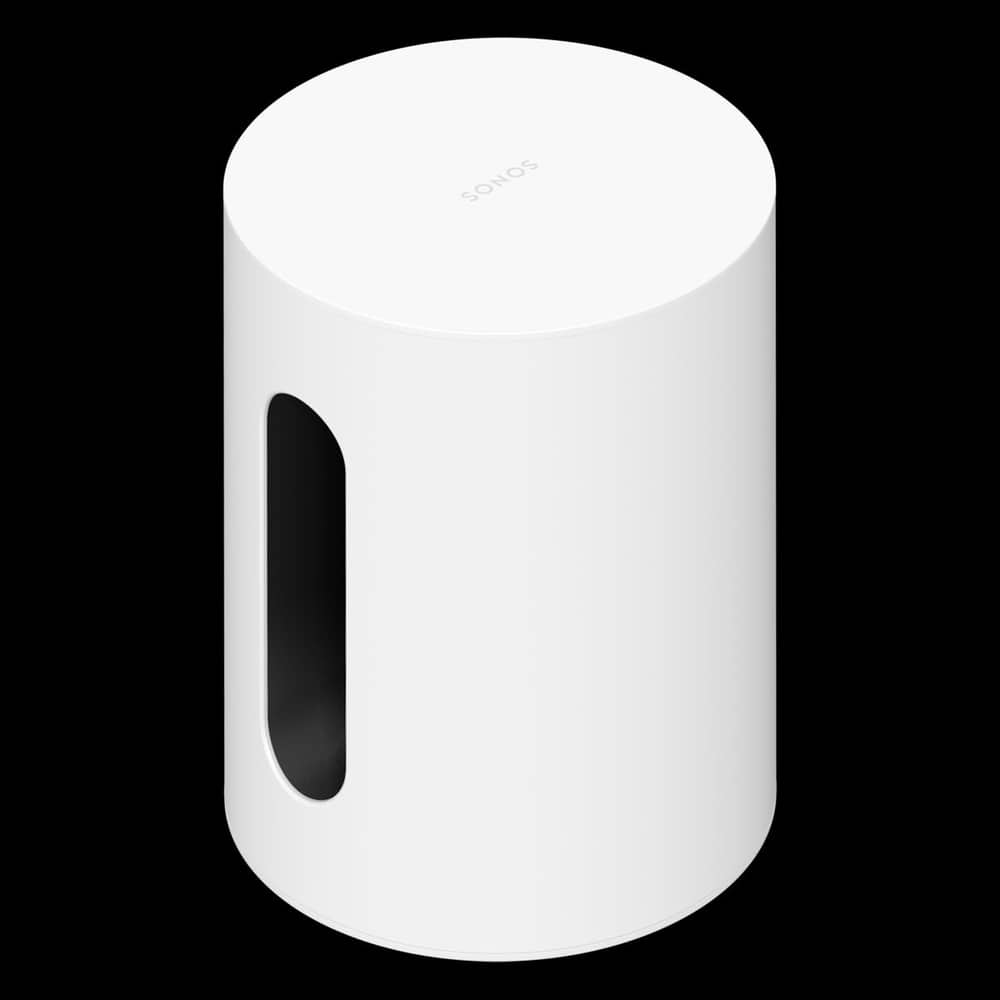

| Colors | Black, White |
| Finish | Matte |
| Join Button | Press once to add Sub Mini to your system during setup. |
Power and Connectivity
| WiFi | Connect to WiFi with any 802.11a/b/g/n 2.4 or 5 GHz broadcast-capable router. Learn more |
|---|---|
| Ethernet | 10/100 port for hardwiring to your router |
| Voltage | 100-240V 50/60Hz internal power supply |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Box Contents
| Sonos Sub Mini | Length: 6 ft (2 m) Learn more |
|---|---|
| Documentation | Set Up Guide and legal/warranty information |
Requirements
| WiFi | Internet connection |
|---|---|
| Power Source | Nearby electrical outlet |
| Sonos app | The latest generation of the Sonos app running on a compatible device Learn more |
| Sonos Product | At least one amplified non-portable product, such as Era 100 or Ray |
Features
- WiFi
Documents
Related models
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for The Woodlands, TX, then quote the install.
