Ray

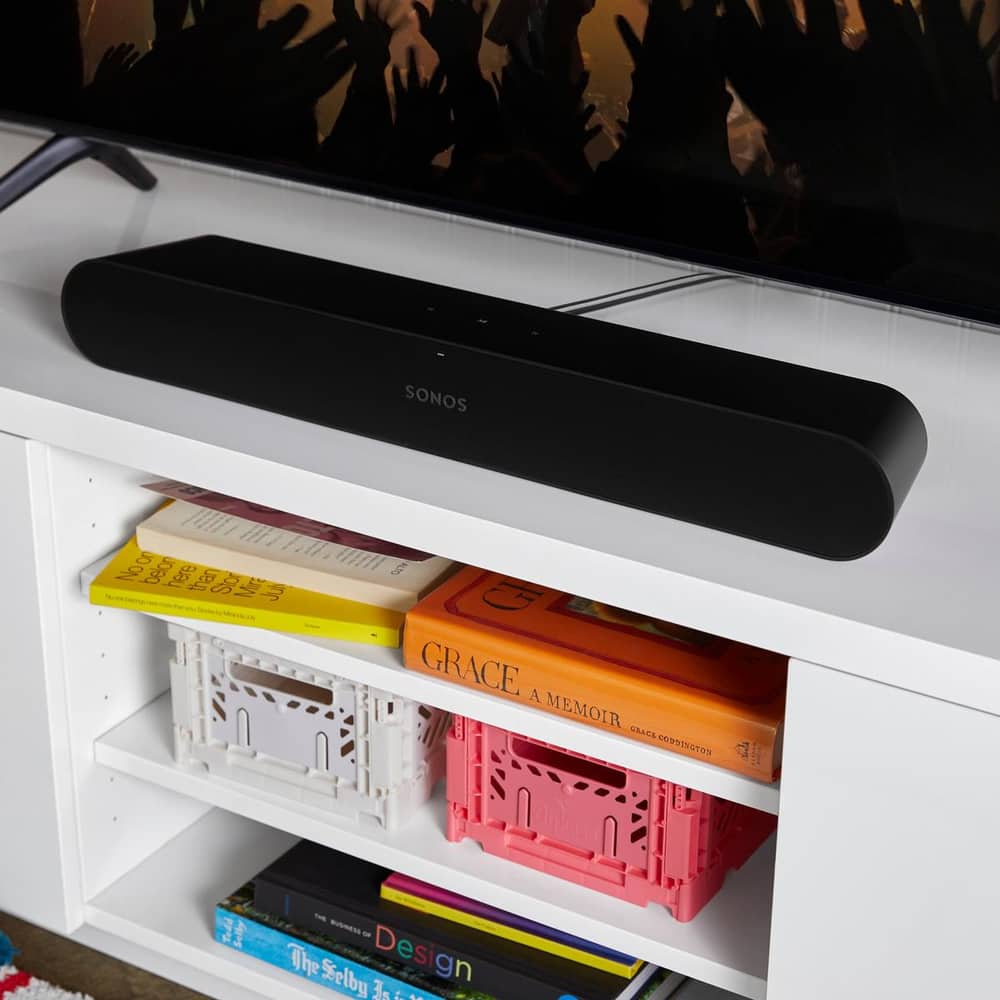

Upgrade your TV, music, and gaming experiences with this impressively compact and easy-to-use soundbar. Experience precisely balanced sound, including crisp dialogue and solid bass, plus streamlined control with your TV remote, the Sonos app, Apple AirPlay 2, and more. It only takes two cables and a few minutes to get set up, and the forward-facing acoustics make Ray ideal for an enclosed space, like a shelf in your TV stand. Enjoy the flexibility to create the Sonos system you want over time when you add speakers for surround sound and multiroom listening.
MPN: RAYG1US1BLK
How we specify in The Woodlands
The Woodlands brings shaded lots, large windows and two story family rooms. Ambient light usually decides the display or screen choice, and in-wall audio placement has to work around window walls. We read the light in the room before recommending anything. For the Ray specifically, we confirm the fit against your room in The Woodlands, TX before quoting the install.
Service area: The Woodlands, Spring, Conroe, Shenandoah, Magnolia, Tomball, Montgomery, Oak Ridge North.
Specifications
Audio
| Amplifiers | All four Class-D digital amplifiers have been fine-tuned to the soundbar's unique acoustic architecture. |
|---|---|
| Tweeters | Two tweeters create a crisp high-frequency response. |
| Midwoofers | Two high-efficiency midwoofers ensure faithful playback of mid-range frequencies and solid bass. |
| Bass Reflex System | Proprietary low-velocity port design minimizes distortion and rounds out low-end frequencies. |
| Adjustable EQ | Use the Sonos app to adjust bass, treble, and loudness. |
| Trueplay | This software measures the acoustics of the room then fine-tunes the soundbar. Supported iOS device required. Learn more |
| Speech Enhancement | Turn this setting on in the Sonos app to boost voice frequencies and clarify dialogue. Learn more |
| Night Sound | Turn this setting on in the Sonos app to reduce the intensity of loud sounds and increase the level of quieter sounds. Learn more |
| Home Theater Audio Formats | Stereo PCM, Dolby Digital*, DTS Digital Surround* (*This is not an indication of a licensed decoder.) The Sonos app's Now Playing screen will display what type of audio is being decoded. Learn more |
| TV Audio Swap | Swap TV audio between the soundbar and Sonos headphones. |
Details and Dimensions
| Dimensions | Height: 2.76 in (70 mm) Width: 21.93 in (557 mm) Depth: 3.66 in (93 mm) |
|---|---|
| Weight | 4.19 lbs (1.9 kg) |

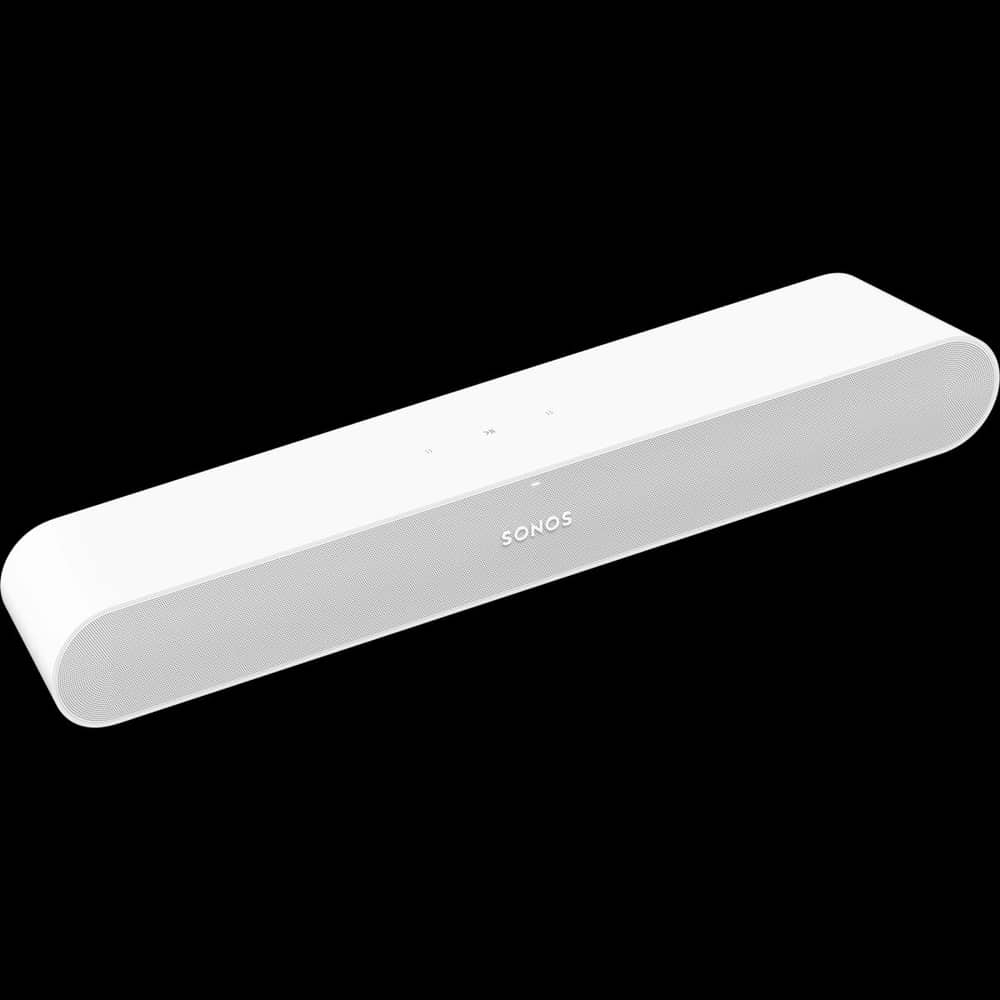

| Colors | Black, White |
| Finish | Matte |
| Mounting | M5 threaded mounting socket |
| Controls | Use the capacitive touch controls on the product to adjust the volume, play, pause, skip, and replay. Learn more |
| LED | Light on the product indicates connection, mute status, and errors. Learn more |
Power and Connectivity
| WiFi | Connect to WiFi with any 2.4 GHz 802.11/b/g/n broadcast-capable router. Learn more |
|---|---|

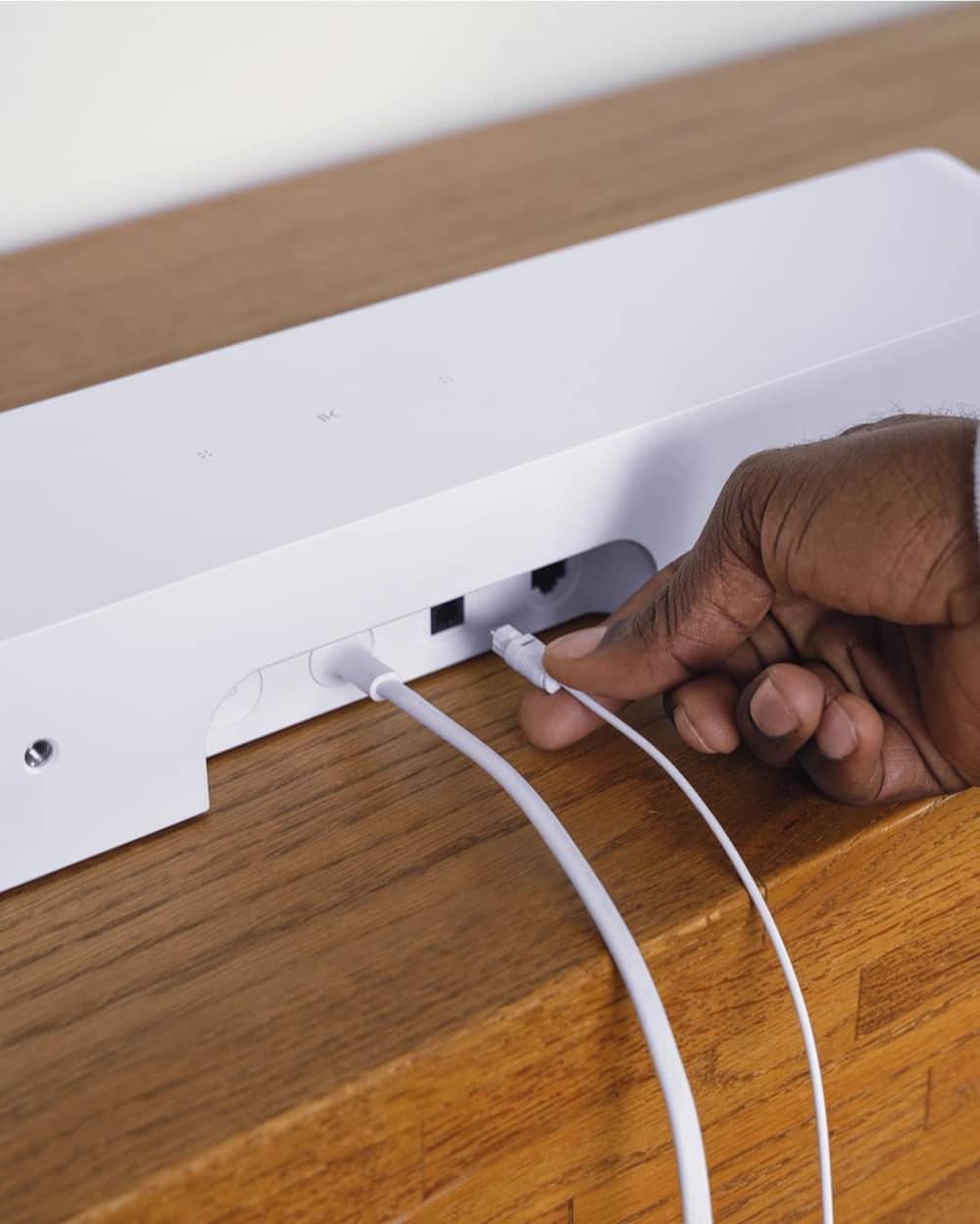

| Optical | Connect to your TV's optical port with the included cable. |
| Ethernet | 10/100 port for hardwiring to your router |
| Infrared (IR) Receiver | Syncs the soundbar with your TV remote for streamlined control |
| Voltage | Auto-switching 100-240V 50/60Hz AC universal input |
| CPU | Quad Core 1.4 GHz A-53 |
| Apple AirPlay 2 | Works with AirPlay 2 on Apple devices iOS 11.4 and higher Learn more |
Box Contents
| Sonos Ray | Length: 6 ft (2 m) Learn more |
|---|---|
| Optical Audio Cable | Length: 4.9 ft (1.5 m) |
| Documentation | Set Up Guide and legal/warranty information |
Requirements
| WiFi | Internet connection |
|---|---|
| Power Source | Nearby electrical outlet |
| Sonos app | The latest generation of the Sonos app running on a compatible device Learn more |
Features
- Optical
- TV remote sync
- Apple AirPlay 2
- Touch controls
- WiFi
- Trueplay™
