MartinLogansubwoofers
Dynamo 12
Impeccable Precision. Indisputable Quality.
Request a quoteTalk to the team that installs it in The Woodlands, TX. System design, screen matching and calibration included in the quote.
How we specify in The Woodlands
The Woodlands brings shaded lots, large windows and two story family rooms. Ambient light usually decides the display or screen choice, and in-wall audio placement has to work around window walls. We read the light in the room before recommending anything. For the Dynamo 12 specifically, we confirm the fit against your room in The Woodlands, TX before quoting the install.
Service area: The Woodlands, Spring, Conroe, Shenandoah, Magnolia, Tomball, Montgomery, Oak Ridge North.
Specifications
Specifications
| Digital Signal Processing | Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing |
|---|---|
| Frequency Response | 22-120 Hz ±3 dB (Anechoic via LFE input) |

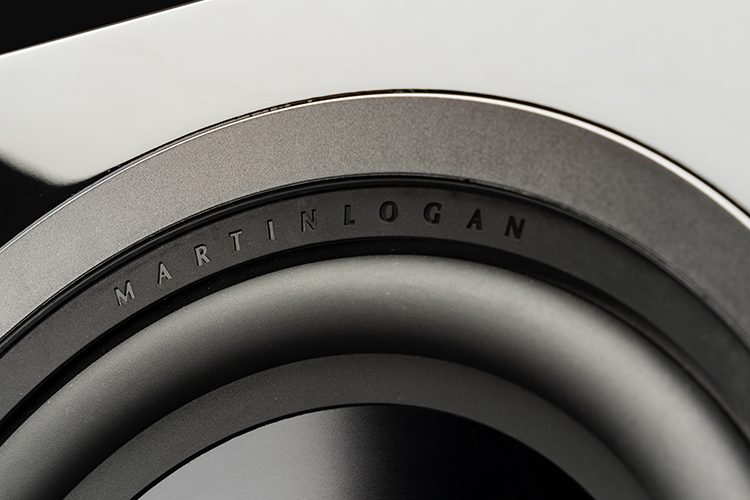

| Low Frequency Transducer | 12" (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket |
| Cabinet | Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle |
| Amplifier | Magnitude MT-1.6kW Amplifier with 1,600W peak (800W continuous) |

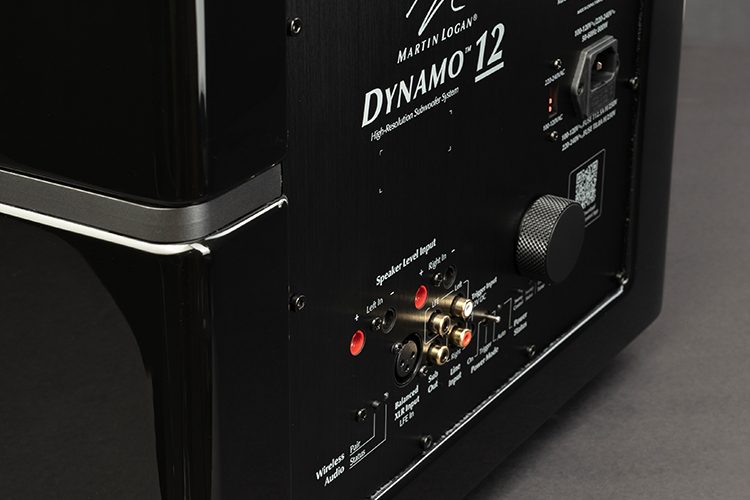

| Controls (Backplate) | Level: Interactive LED Backlit Knob; Tone Sweep: Sweep Start and Pause (with status light); Power Mode: On, 12v Trigger, Auto; Wireless Audio Pairing Button (for included MartinLogan wireless transmitter) |
| Controls (via Bluetooth) | Level: -40 to 12dB (Min-Max); Low-Pass Filter (Frequency): 35-120Hz (1° Increments); Low-Pass Filter (Order): Bypass, Third, Fourth; Phase: 0-180° (1° Increments); Phase (Polarity): Normal, Inverted; Preset Listening Modes: Movie, Music, Night; 20-30Hz Level: ±10dB; Anthem Room Correction (ARC Genesis): On, Off; Tone Sweep (120-20Hz): On, Off, Pause (Frequency) |
| Wireless Inputs | Integrated Wireless Receiver, Wireless Transmitter Included |
| Inputs | Line Level: Left, Right, and LFE XLR: LFE; Speaker Level: Left and Right (requires banana plugs) |
| Power Draw | Max: 800W; Standby (Wireless Disabled): 0.5W; Standby (Wireless Enabled): <2W; *Transmitter and Subwoofer combined |
| Feet | Integrated Anti-Vibration Feet (carpet spikes included) |
| Weight | 61.5 lbs (27.9 kg) |
| Dimensions (H x W x D) | 16-3/4" x 15-3/4" x 15-3/4" (42.4cm x 39.9cm x 39.9cm) |

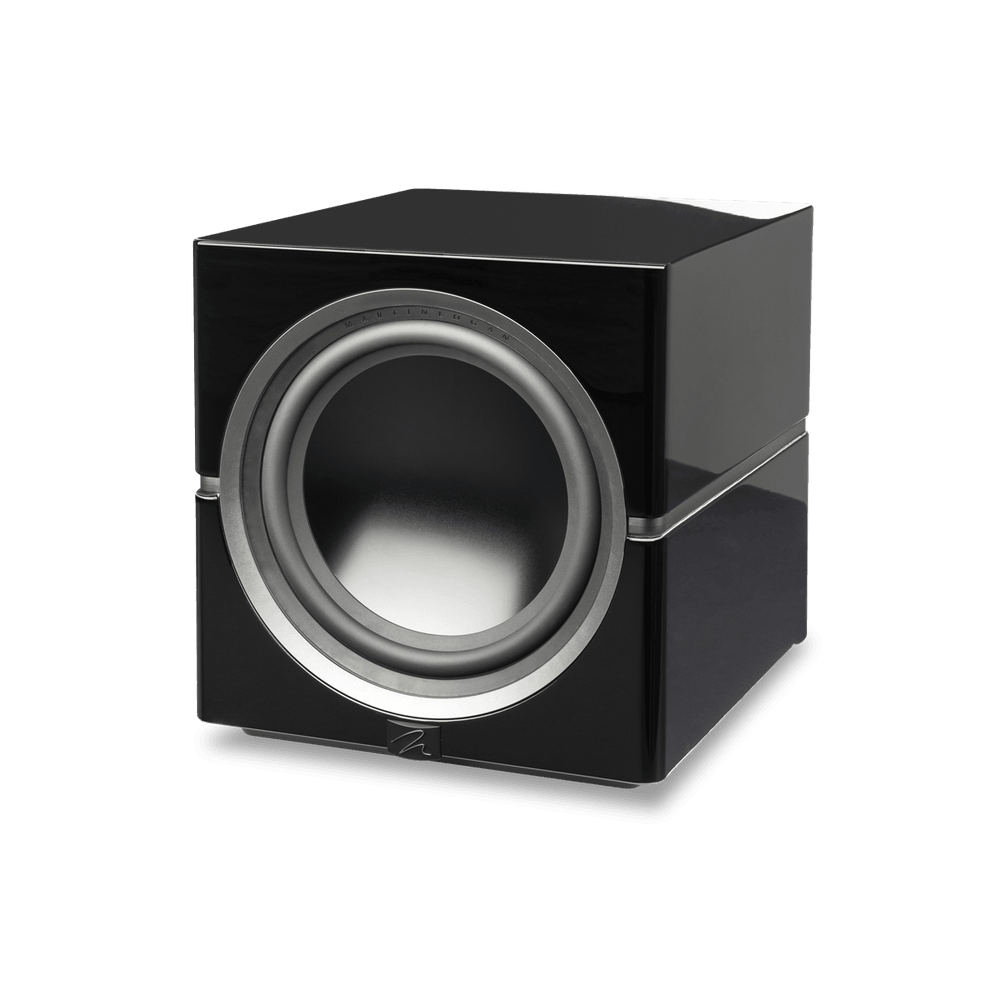

| Finish | Gloss Black |
Features
- Seamlessly Integrating High-Performance Audio with Elegant Design
- Advanced Aluminum Woofers for Powerful, Distortion-Free Bass
- Magnitude MT-1.6kW Amplifier
- Advanced Vojtko DSP Engine: Elevating Subwoofer Performance
- Built-In Wireless Capability
- Sound Structure
- Robust Connectivity
- Reduced Vibration, Enhanced Bass
- Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App
- Optimize Bass Performance with Award-Winning Anthem Room Correction
- Incredible Performance Dressed In Black
