MartinLogansubwoofers

Dynamo 10

Impeccable Precision. Indisputable Quality.

Request a quoteTalk to the team that installs it in The Woodlands, TX. System design, screen matching and calibration included in the quote.

How we specify in The Woodlands

The Woodlands brings shaded lots, large windows and two story family rooms. Ambient light usually decides the display or screen choice, and in-wall audio placement has to work around window walls. We read the light in the room before recommending anything. For the Dynamo 10 specifically, we confirm the fit against your room in The Woodlands, TX before quoting the install.

Service area: The Woodlands, Spring, Conroe, Shenandoah, Magnolia, Tomball, Montgomery, Oak Ridge North.

Specifications

Specifications

Digital Signal ProcessingUltra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Frequency Response23-120 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer10" (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket
CabinetPrecision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle
AmplifierMagnitude MT-1kW Amplifier with 1,000W peak (500W continuous)
Controls (Backplate)Level: Interactive LED Backlit Knob; Tone Sweep: Sweep Start and Pause (with status light); Power Mode: On, 12v Trigger, Auto; Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Controls (via Bluetooth)Level: -40 to 12dB (Min-Max); Low-Pass Filter (Frequency): 35-120Hz (1° Increments); Low-Pass Filter (Order): Bypass, Third, Fourth; Phase: 0-180° (1° Increments); Phase (Polarity): Normal, Inverted; Preset Listening Modes: Movie, Music, Night; 20-30Hz Level: ±10dB; Anthem Room Correction (ARC Genesis): On, Off; Tone Sweep (120-20Hz): On, Off, Pause (Frequency)
Wireless InputsIntegrated Wireless Receiver, Wireless Transmitter Included
InputsLine Level: Left, Right, and LFE XLR: LFE; Speaker Level: Left and Right (requires banana plugs)
Power DrawMax: 500W; Standby (Wireless Disabled): 0.5W; Standby (Wireless Enabled): <2W; *Transmitter and Subwoofer combined
FeetIntegrated Anti-Vibration Feet (carpet spikes included)
Weight42.8 lbs (19.4 kg)
Dimensions (H x W x D)14-3/4" x 13-3/4" x 13-3/4" (37.3cm x 34.8cm x 34.8cm)

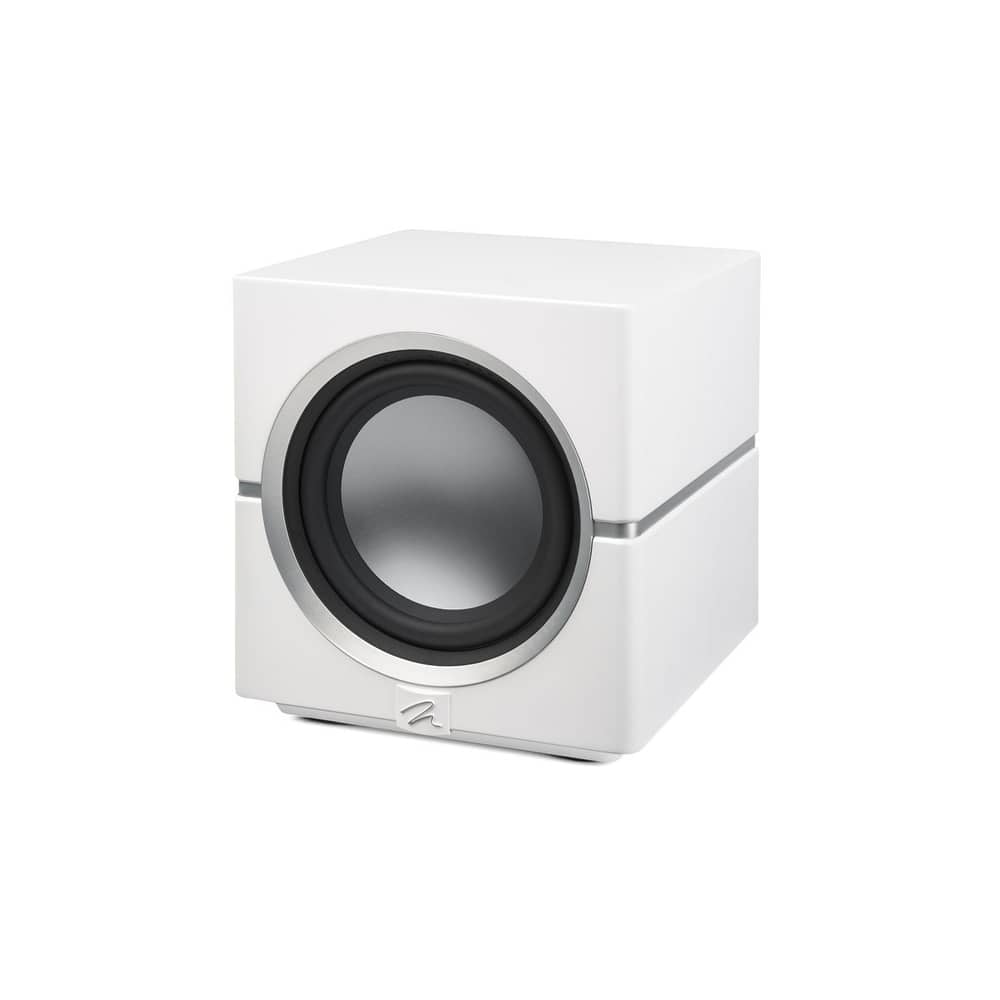

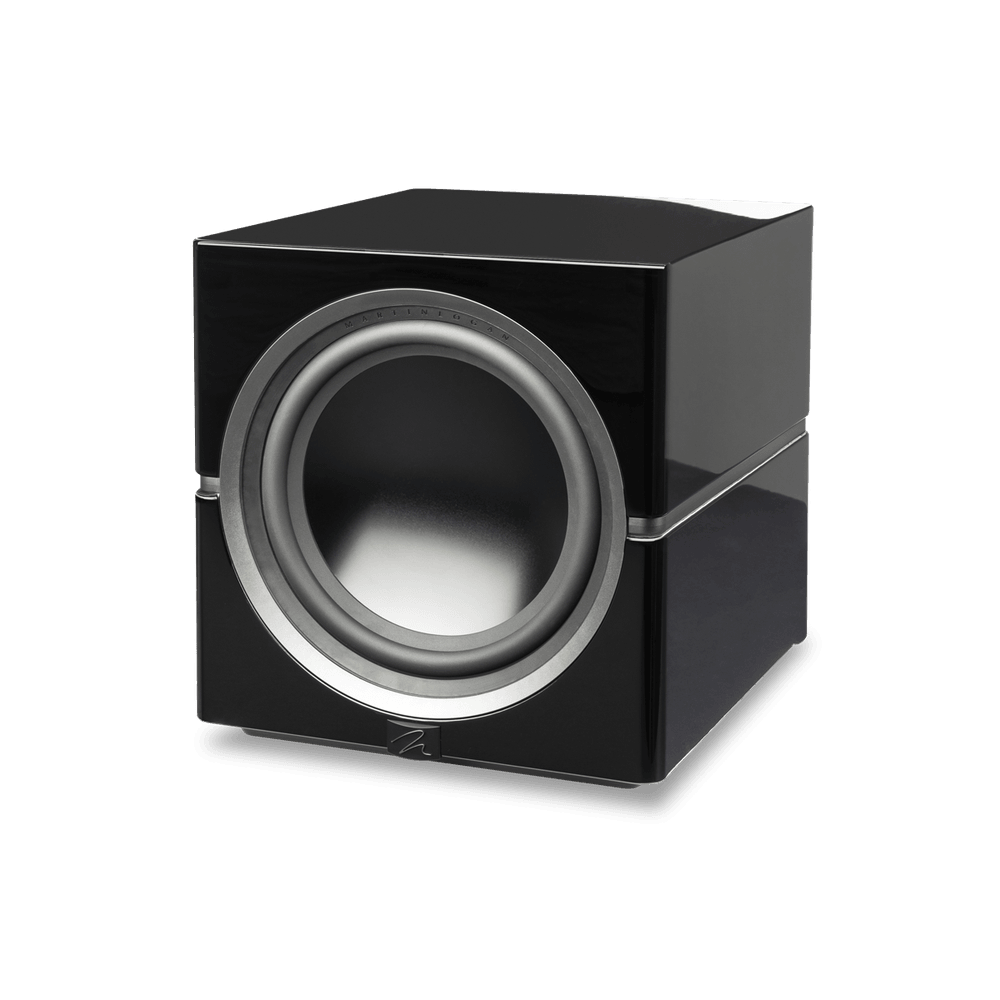

FinishGloss Black or Satin White

Features

  • Seamlessly Integrating High-Performance Audio with Elegant Design
  • Advanced Aluminum Woofers for Powerful, Distortion-Free Bass
  • Magnitude MT-1kW Amplifier
  • Advanced Vojtko DSP Engine: Elevating Subwoofer Performance
  • Built-In Wireless Capability
  • Sound Structure
  • Robust Connectivity
  • Reduced Vibration, Enhanced Bass
  • Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App
  • Optimize Bass Performance with Award-Winning Anthem Room Correction
  • Legendary Performance in Your Choice of Style
